Zirconia Material
Created with Pixso. High-Strength ST Zirconia , 1200MPa for Multi-Unit Bridges , ISO Class 5 Certified

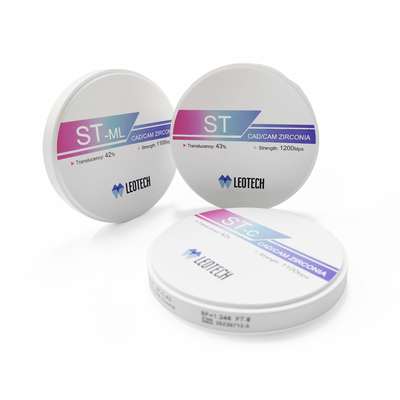

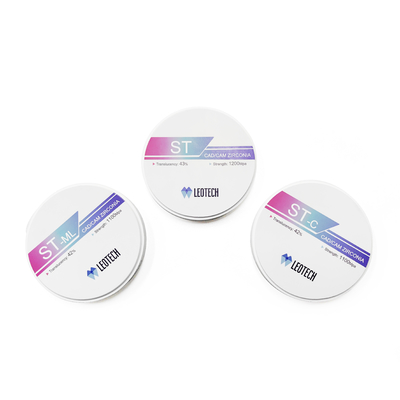

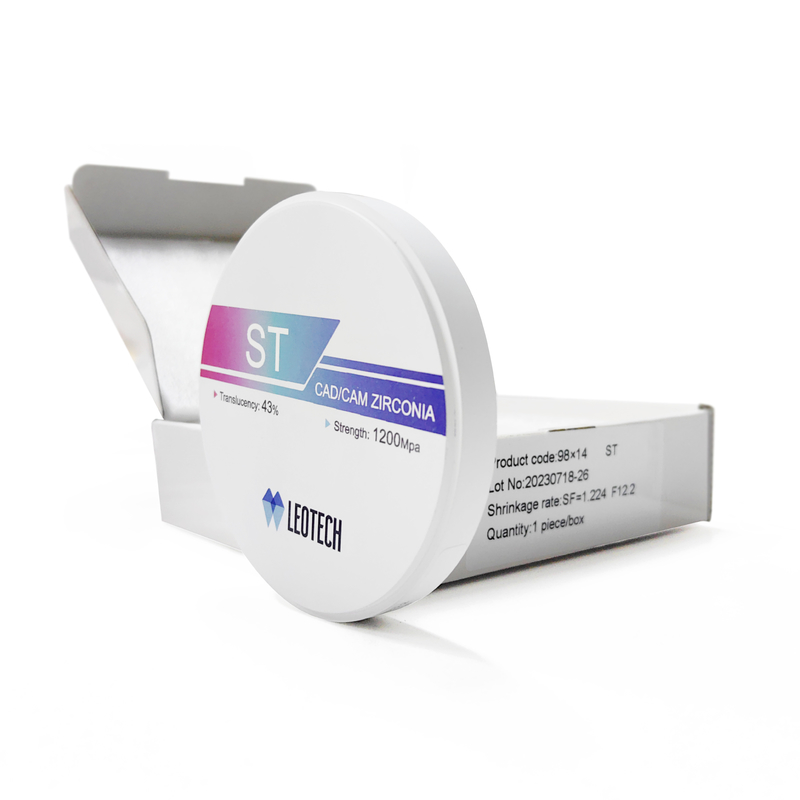

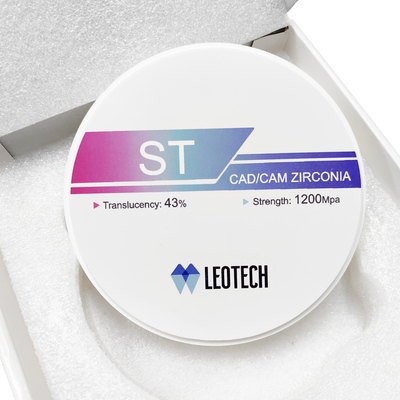

High-Strength ST Zirconia , 1200MPa for Multi-Unit Bridges , ISO Class 5 Certified

Brand Name: LeoTech
Model Number: ST
MOQ: 5boxes
Price: $13.00-50.00/boxes
Detail Information
Place of Origin:
Chongqing, China
Certification:
CE
Power Source:
Manual
Warranty:
1 Year
After-sale Service:
Online Technical Support
Material:
Zirconia
Shelf Life:
1years
Quality Certification:
Ce
Instrument Classification:
Class II
Safety Standard:
None
Product Description

High-Strength ST Zirconia , 1200MPa for Multi-Unit Bridges , ISO Class 5 Certified
Engineered for demanding posterior applications, ST's 1200MPa flexural strength supports 4+ unit bridges with 500,000+ chewing cycle durability. The 6.5 MPa·m¹ᐟ² fracture toughness prevents marginal chipping, while <15% monoclinic phase ensures decade-long stability in wet environments.

Bridge Performance Metrics

Test Result
Load Resistance 1500N (molar zone)
Marginal Accuracy <60μm discrepancy
Wear Rate 0.03mm/year

Clinical Validation

  • 0% framework fractures in 3-year study (n=500 bridges)

  • 98.2% survival rate at 5-year recall

  • Compatible with all major cement systems

Technical Information
High-Strength ST Zirconia , 1200MPa for Multi-Unit Bridges , ISO Class 5 Certified 0
Product paramenters
Model ST
Size 98mm,95mm,92*75mm
Translucency 43%
Shades White
Strength 1300 MPa
Dimensions: 98mm, 95mm, 92x75mm Translucency: 43% Strength: 1200MPa Shades: white Sizes: 10mm/12mm/14mm/16mm 18mm/20mm/22mm/25mm

ST/SHT/SHT-ML Sintering
Max Heating rate: 10℃ per minute Final temperature: 1500℃-1550℃, 1530℃ is best
Holding time at final temperature: 2 hours
Cooling should be done without temperature control in closed furnace
Never open the furnace before it has reached a temperature of less than 80℃ to avoid thermal shocks

Sintering charts:

High-Strength ST Zirconia , 1200MPa for Multi-Unit Bridges , ISO Class 5 Certified 1


High-Strength ST Zirconia , 1200MPa for Multi-Unit Bridges , ISO Class 5 Certified 2
High-Strength ST Zirconia , 1200MPa for Multi-Unit Bridges , ISO Class 5 Certified 3

High-Strength ST Zirconia , 1200MPa for Multi-Unit Bridges , ISO Class 5 Certified 4
High-Strength ST Zirconia , 1200MPa for Multi-Unit Bridges , ISO Class 5 Certified 5
High-Strength ST Zirconia , 1200MPa for Multi-Unit Bridges , ISO Class 5 Certified 6

ODM&OEM Avaliable
High-Strength ST Zirconia , 1200MPa for Multi-Unit Bridges , ISO Class 5 Certified 7
High-Strength ST Zirconia , 1200MPa for Multi-Unit Bridges , ISO Class 5 Certified 8
High-Strength ST Zirconia , 1200MPa for Multi-Unit Bridges , ISO Class 5 Certified 9


Why choose us?
High-Strength ST Zirconia , 1200MPa for Multi-Unit Bridges , ISO Class 5 Certified 10


Factory Display
High-Strength ST Zirconia , 1200MPa for Multi-Unit Bridges , ISO Class 5 Certified 11


Packing&delivery
High-Strength ST Zirconia , 1200MPa for Multi-Unit Bridges , ISO Class 5 Certified 12


FAQ

1. Who are we?
We are a professional medical device supplier located in Chongqing, the middle of China. We concentrates on clinical medical equipment development and production by working with our quality factories and scientific institutes. By offering one stop service on medical device, our experienced staff members are always available to discuss your requirements and ensure full customer satisfaction.

2. How can we guarantee quality?
CE certificates and ISO quality control system are essential.
Production data and update would be provided during manufacturing.
Final inspection and testing are always done before shipment.

3. Why should you buy from us rather than other suppliers?
10+ years experience at medical & health care industry makes us more professional.
Not just one stop service, but also the resources integration service that we are offering, to help our customer to win the
market.

4. How can you get your quotation as soon as possible?
You can send us messages by trade manager, email, whatsapp, facebook, Instagram or phone call, tell us your interested items,
quantity, destination, and other detail requirements. We will reply you as soon as possible.

5. Can we provide RTS / fast delivery services?
Yes, we do. Please find our RTS page and place the order, or contact our manager. We will deliver your require items in 15 days as
soon as we confirmed the order and received the payment.

6. Can we provide OEM/ODM service?
Yes, we offer OEM/ODM service if your buying quantity comes to the certain number, which depends on difference items. Please
contact our manager for further information.
