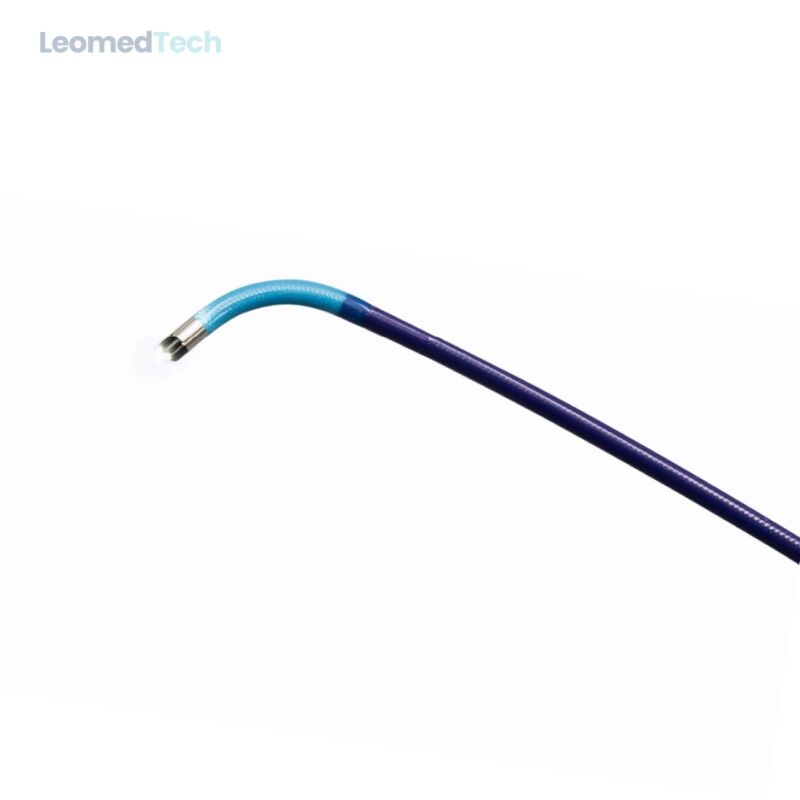

Disposable Pancreaticobiliary Endoscope with 220° Four Way Deflection for Cholangioscopy

Disposable Pancreaticobiliary Endoscope with 220° Four Way Deflection for Cholangioscopy
Basic Properties
Country Of Origin
China
PRODUCT MODEL
LCHE Series
Trading Properties
MOQ
10
Payment Method
T/T,L/C
Product Summary

Single-use pancreaticobiliary endoscope with 220° four-way deflection and 120° field of view. 1.2mm/2.0mm working channel, 55% forceps ratio, cold light source, and special light mode for cholangioscopy.

Product Details
Highlight:

Cholangioscopy Disposable Pancreaticobiliary Endoscope

,

Disposable Pancreaticobiliary Endoscope for Cholangioscopy

,

Four Way Deflection Disposable Pancreaticobiliary Endoscope

Field Of View: 120° Wide Angle
Deflection: 220° 4-way Articulation
Handle Weight: 75g Ultra-light Ergonomic Design
Handle Controls: Multi-function Shortcut Buttons; Depth Indicator Dual-color Design
Light Source: Cold Light Source (auto Brightness Adjustment)
Imaging Modes: White Light / Special Light (SSI)
Compatibility: 3.2mm / 3.7mm / 4.2mm
Sterilization: Single-Use, Sterile
Product Description

Disposable Pancreaticobiliary Endoscope

Key Features

  • Ultra-Fine Through-Scope Design Slim profile fits seamlessly into 3.2–4.2mm diameter endoscope working channels, enabling direct intraductal visualization without dedicated large-bore access.
  • 220° 4-Way Wide Articulation Four-directional deflection with 220° total range supports large-angle, multi-angle maneuvering within the biliary tree and pancreatic duct, reducing blind spots.
  • High Channel-to-Shaft Ratio Up to 55% channel-to-shaft ratio accommodates standard 1.8mm instruments, improving biopsy yield and diagnostic accuracy while maintaining a slim overall profile.
  • Optional SSI Special Light Imaging Enhanced contrast mode improves mucosal and vascular pattern visualization, aiding detection of subtle lesions, dysplasia and ductal abnormalities.
  • Ergonomic Lightweight Handle 75g ultra-light handle reduces wrist fatigue during prolonged procedures. Integrated shortcut controls and dual-color depth markers improve procedural efficiency and positional awareness.

Imaging Catheter

Instrument Channel (mm)

Compatible Mother-scope Channel (mm)

Field of View

Imaging Mode

LCHE.0912L / X / S

1.2

3.7 / 3.8 / 4.2

120°

White Light

LCHES-1120L / P / X / S

2.0

4.2 / 4.8

120°

White Light / Special Light

LCHES-1120M

2.0

4.2 / 4.8

120°

White Light / Special Light

LCHES-1120S

2.0

4.2 / 4.8

120°

White Light / Special Light

LCHES-1120X

2.0

4.2 / 4.8

120°

White Light / Special Light

Disposable Endoscope_inside

Disposable Endoscope_inside design

Disposable Endoscope_images

FAQ

  1. Q1: How is this different from a standalone disposable choledochoscope?

    A standalone choledochoscope is a complete independent endoscope inserted directly into the biliary tract. This imaging catheter is a mini endoscope designed to pass through the working channel of an existing mother endoscope (duodenoscope or choledochoscope) for ERCP and per-oral cholangioscopy procedures.

  2. Q2: What size mother endoscope channels does this fit?

    It is compatible with mother endoscopes with 3.2mm, 3.7mm and 4.2mm working channels, depending on the specific catheter model selected.

  3. Q: What is the deflection range of the catheter tip?

    The tip features 220° total 4-way articulation, enabling flexible navigation within the biliary tree, hepatic ducts and pancreatic duct for comprehensive examination.

  4. Q: Is SSI special light imaging available with this catheter?

    Yes. S-series models support both white light and SSI special light modes for enhanced contrast imaging of ductal mucosa and subtle pathological changes.
