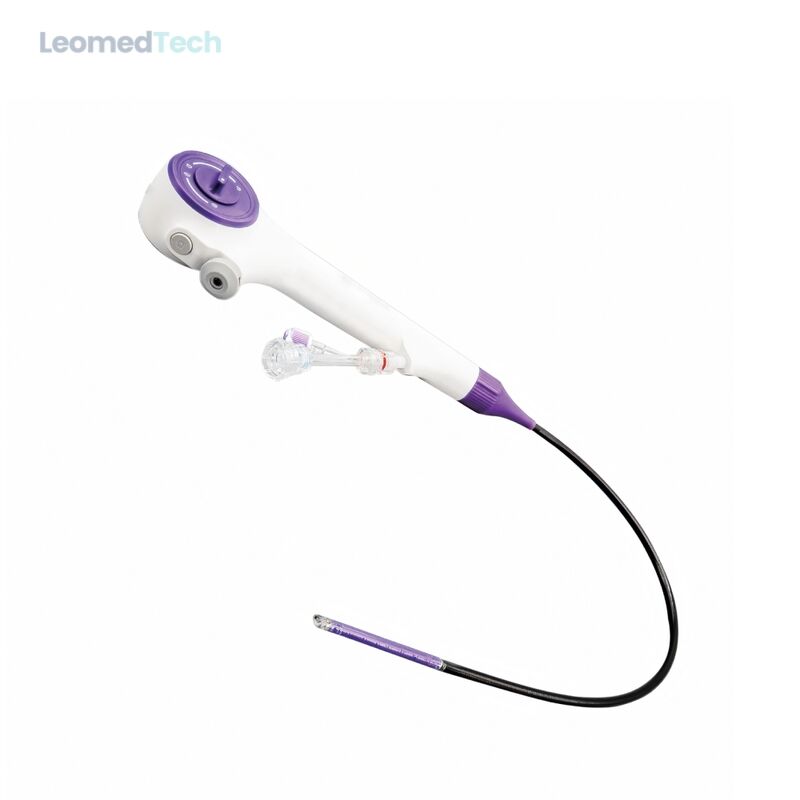

Disposable Biliary Endoscope 2.3mm Working Channel 180° Deflection Single-Use Choledochoscope

Disposable Biliary Endoscope 2.3mm Working Channel 180° Deflection Single-Use Choledochoscope
Basic Properties
Country Of Origin
China
PRODUCT MODEL
DBE Series
Trading Properties
MOQ
10
Payment Method
T/T,L/C
Product Summary

Single-use biliary endoscope with 180° deflection and 120° field of view. 2.3mm working channel, 65g lightweight handle, and synchronized 1:1 rotation for cholangioscopy and stone retrieval.

Product Details
Highlight:

180° Deflection Disposable Biliary Endoscope

,

2.3mm Working Channel Disposable Biliary Endoscope

,

Single Choledochoscope Disposable Biliary Endoscope

Working Length: 320mm / 355mm / 380mm
Field Of View: 120° Wide Angle
Deflection Angle: 180° Bidirectional Adjustable
Rotation: 1:1 Synchronized Rotation (180° Rotation Ring)
Handle Weight: 65g Lightweight
Handle Controls: Negative Pressure Suction Button; One-touch Image Capture / Save
Product Description

Single-Use Biliary Endoscope | Disposable Cholangioscope

Key Features

  •    2.3mm Large Working Channel Accommodates multiple surgical instruments and simultaneous irrigation, supporting diagnostic examination and therapeutic procedures such as stone extraction in a single insertion.
  •    180° Precise Bidirectional Deflection Wide-angle articulation enables flexible navigation into the common bile duct and branch bile ducts, reducing procedural blind spots and improving examination comprehensiveness.
  •    1:1 Rotational Control & Lightweight Handle 180° rotation ring delivers 1:1 axial steering for accurate manipulation. 65g lightweight ergonomic handle reduces hand fatigue during extended procedures.
  •    120° Wide Field of View Expansive viewing angle extends examination coverage, minimizes blind areas and supports thorough inspection of the biliary tract.
  •    Integrated Procedure Controls Built-in negative pressure suction button maintains clear visualization; one-touch image capture and save controls improve procedural efficiency and documentation.

Imaging Catheter

Instrument Channel Diameter (mm)

Working Length (mm)

Field of View

8F

1.2

320 / 355 / 380

120°

11F

2.2

320 / 355 / 380

120°

14F

2.3

320 / 355 / 380

120°

Disposable Cholangioscope Image

FAQ

Q1: Is this biliary endoscope reusable or disposable?

It is a single-use disposable device, sterilized by ethylene oxide. It eliminates cross-contamination risk and avoids reprocessing costs between procedures.

Q2: What is the size of the working channel?

The working channel diameter is 2.3mm, which accommodates standard biliary instruments and allows simultaneous irrigation and therapeutic intervention.

Q3: How much deflection does the endoscope tip have?

The tip features 180° bidirectional deflection, enabling flexible navigation into the common bile duct and branch bile ducts with precise control.

Q4: Which endoscopy processor is this endoscope compatible with?

It is designed for use with the Mercury electronic endoscopy video processor system for full HD biliary imaging and recording.
