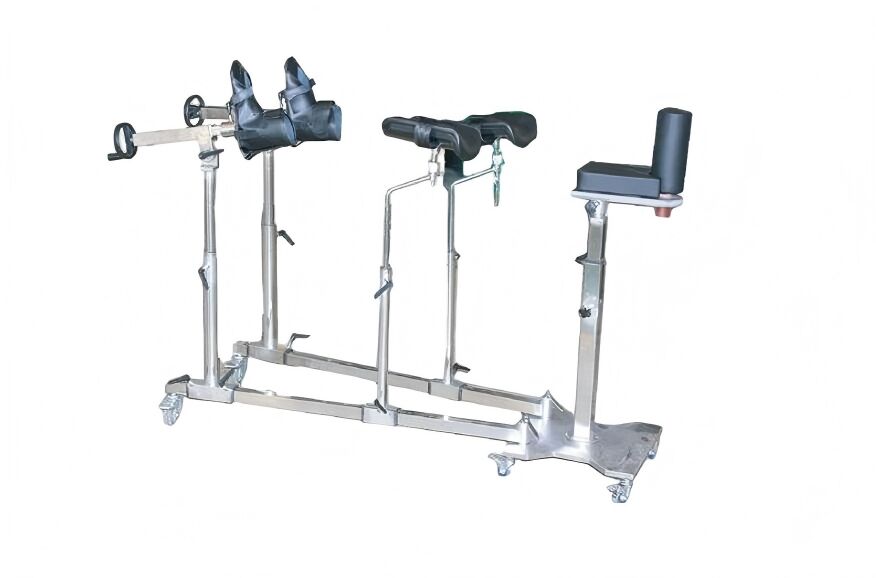

Stainless Steel Suspension Traction Frame with Multi-Position Pelvic Frame 30cm Lift Range

This Stainless Steel Suspension Traction Frame is primarily made of high-quality stainless steel for long-lasting durability. It is specifically designed for lower limb traction, hip fluoroscopy, and fracture reduction in orthopedic surgery. Its multi-position pelvic frame, complete radiolucent compatibility, 30cm lift range, and flexible adjustment functions make it a reliable surgical auxiliary tool for precise traction reduction under C-arm fluoroscopy.

1. High-Quality Stainless Steel Construction: The main metal parts are made of high-quality stainless steel, ensuring durability, corrosion resistance, and easy cleaning – suitable for high-intensity use in operating rooms.

2. Multi-Position Pelvic Frame Design: The pelvic frame offers three optional connection positions (left, center, right). During hip fluoroscopy surgery, this design avoids obstruction by the traction frame and allows surgeons to approach the patient from both sides, significantly improving operational convenience.

3. Complete C-Arm Compatibility: Easily used with any C-arm position – no obstruction, no dead angles, fully radiolucent, ensuring clear intraoperative imaging without blocking.

4. Lift Column Expansion Function: The pelvic frame on the lift column can also accept a lateral frame or knee frame, offering multi-functionality. The lift range is 30 cm, accommodating skeletal size differences across all ages and genders.

5. Flexible Traction Bar Adjustment: The traction bar features wide angle adjustment and a telescopic design, adapting to different patient body types and surgical positioning needs.

6. Multi-Directional Ankle Fixator: The ankle fixator can rotate 360° and can also be removed to attach other accessories, offering flexible application to meet complex surgical needs.

7. Complete Product Components: The product consists of connection fixator, perineal post, abduction bar, traction device, foot plate fixation rod, side rail, support column, swivel joint, frame, traction foot plate, traction foot plate direction clamp, etc., providing a complete system ready for use.

8. Clinical Core Function: During surgery, using this traction frame allows patients to easily achieve good reduction results under C-arm fluoroscopy by adjusting the traction device, minimizing positional changes, and significantly facilitating surgical progress.
