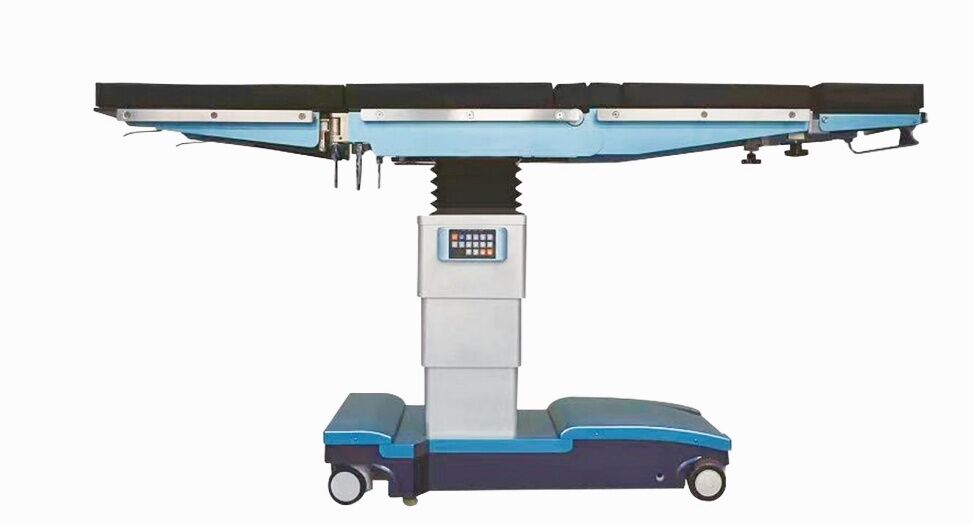

DY-9100 Electric Hydraulic Operating Table with Carbon Fiber Panel C-Arm Compatibility
The DY-9100 Electric Hydraulic Operating Table features sturdy build and dual controls. Equipped with carbon fiber panel and full stainless steel body, it enables stable, precise positioning and supports diverse surgical procedures.
electric hydraulic operating table
,carbon fiber operating table
,C-arm compatible operating table
DY-9100 Electric Hydraulic Operating Table – Precision and Stability for Advanced Surgical Procedures
The DY-9100 Electric Hydraulic Operating Table combines robust construction, intelligent design, and smooth hydraulic movement to support a wide range of surgical positions with precision and stability. Engineered with a carbon fiber panel, full stainless-steel body, and dual control systems, it is built to enhance surgical workflow, imaging compatibility, and long-term reliability in the operating room.
Key Product Features:
-
Electric Hydraulic Drive System: Replaces traditional electric push-rod mechanisms, delivering smoother, more uniform, and reliable positioning with enhanced durability.
-
Independent Motion Control: Separate power systems drive height adjustment, horizontal shift, head/foot tilt, lateral tilt, and braking for precise and stable movement.
-
Carbon Fiber Back Panel & Horizontal Shift: Features a 320mm electric horizontal shift, providing ample space for C-arm positioning without patient repositioning, enabling full-body X-ray imaging.
-
Built-in Lumbar Support Option: Compatible with manual lumbar support for versatile patient positioning in various surgical procedures.
-
304 Stainless Steel Construction: The base and exterior cover are made of anti-glare stainless steel, reducing eye strain for staff and facilitating easy cleaning and disinfection.
-
Optimized Base Design: Provides generous space for C-arm movement and surgical staff mobility while ensuring balance and stability during all table motions.
-
Large Caster Mobility: Equipped with large wheels (≥100mm diameter) for easy maneuverability. The brake system lifts casters and secures the base to the floor for excellent stability.
-
Standard & Reverse Modes: Supports head-foot exchange function for flexible surgical setups.
-
Dual Independent Control Systems: Includes both a handheld remote control and a built-in bedside panel, ensuring continuous operation even if one system fails.
-
High-Capacity Battery & AC Power: Can be equipped with premium rechargeable batteries supporting 50–80 surgeries per charge, with automatic AC power switching for maximum safety.
-
High-Density Memory Foam Mattress: Provides patient comfort and support.
-
One-Touch Positioning & Auto Power-Off: Allows quick shape adjustment (V-shape or flat) via handheld controller with automatic power management.
Primary Positioning Functions:
-
Table Height Adjustment
-
Backrest Elevation
-
Back Panel Lifting
-
Tabletop Horizontal Shift
-
Left/Right Lateral Tilt
Technical Specifications Overview:
| Feature | Description |
|---|---|
| Model | DY-9100 |
| Drive Type | Electric Hydraulic |
| Tabletop Material (Back) | Carbon Fiber |
| Frame Material | 304 Stainless Steel (Anti-Glare Finish) |
| Horizontal Shift Range | 320mm |
| Caster Size | ≥ 100mm diameter |
| Power Source | Rechargeable Battery (50-80 surgeries) & AC Power |
| Control Systems | Handheld Remote + Integrated Bedside Panel (Independent) |
| Mattress Type | High-Density Memory Foam with Artificial Leather Cover |
| Positioning Modes | Standard & Reverse (Head-Foot Exchange) |
