Portable AI-Powered Ultrasound System with Real-Time Guidance
It is an AI ultrasound workstation with real-time tissue segmentation, smart anatomy teaching, and integrated diagnostic platform. Dual-screen system with 16+ anatomical regions, standard plane recognition, and pre/post treatment comparison for multidisciplinary clinical use.
AI Ultrasound System
,Real-Time Anatomical Recognition AI Ultrasound System
,Mobile AI‑Enhanced Diagnostic Workstation
Portable AI-Powered Ultrasound System with Real-Time Guidance
Overview

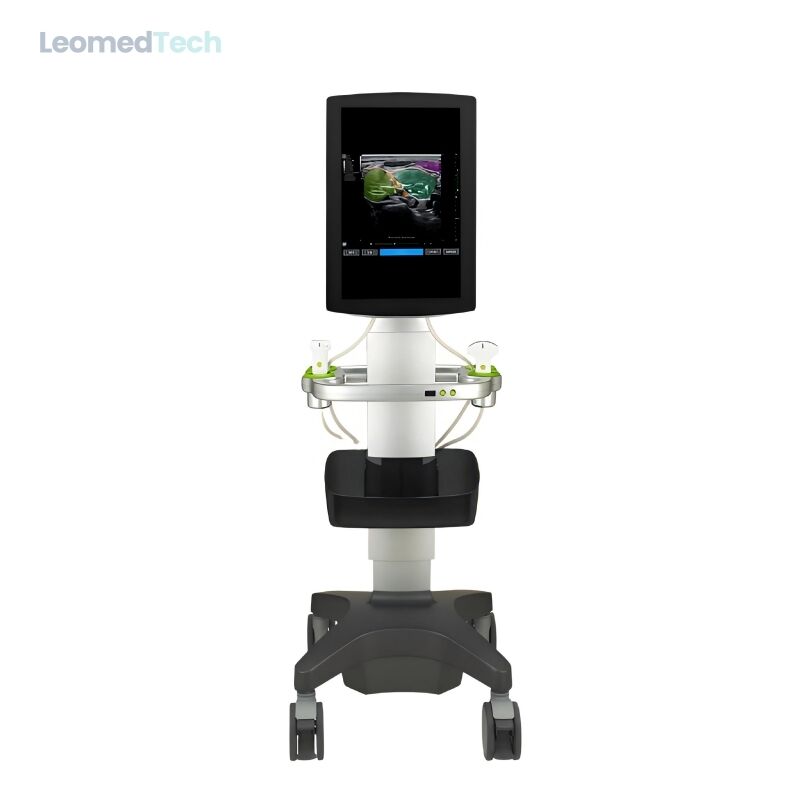

UltraVid Cart is an all-in-one mobile AI ultrasound system built for anesthesiology, pain medicine, rehabilitation, interventional radiology, and surgery. Featuring a 19-inch vertical capacitive touchscreen, motorized height adjustment, integrated probe management, and built-in AI multi-tissue recognition with precision needle guidance, it delivers console-level performance in a portable cart design — with 6+ hours of continuous scanning battery life.
The system supports 1.0–15.0 MHz probes (linear, convex, and more), includes 240 GB+ onboard storage, and runs the UltraVidNet AI engine trained on 108 standard scan planes and 12 million+ annotated frames. Whether performing nerve blocks, joint injections, or vascular access, UltraVid Cart Pro provides real-time anatomical visualization and procedural navigation for safer, more accurate interventions.
Key AI Features
Real-Time Anatomical Recognition
- Dynamically identifies bones, vessels, muscles, and nerves across 7 regions (anterior neck, shoulder, elbow, wrist, hip, knee, ankle)
- Color-codes key structures (e.g., brachial plexus, median nerve) directly on the ultrasound image
- Provides a clear anatomical map during live scanning
Precision Needle Guidance
- Intelligent needle enhancement highlights the needle shaft and clearly shows the tip
- During out-of-plane puncture, AI tracks the needle's 3D position in real time
- Combined with compass ultrasound positioning for accurate targeting in deep venous cannulation and trigger-point injections
- Reduces vascular and nerve injury risk
Standard Plane Navigation
- Real-time alignment feedback (red/green box) for consistent image acquisition
- Supports multi-department use with standardized scan protocols
Bilateral Comparison & Quantitative Analysis
- Healthy vs. affected side comparison
- Automatic measurement of lesion area, perimeter, grayscale intensity
- Objective benchmarks for treatment planning and recovery tracking
Teaching & Training Module
- Real-time scan annotation for resident education
- AI-original dual-screen display
- Click-on-image video playback for case review
Clinical Applications
| Department | Procedures & Use Cases |
|---|---|
| Anesthesiology | Nerve blocks (stellate ganglion, brachial plexus, sciatic), vascular access localization |
| Pain Medicine | MSK injections, trigger point therapy, nerve root blocks (>85% pain relief within 72 hours) |
| Rehabilitation | Interventional assessment, guided therapy, progress monitoring |
| Interventional Radiology | Soft tissue biopsy, minimally invasive procedures |
| Orthopedics | Joint injections, frozen shoulder release, plantar fasciitis treatment |
| Surgery | Intraoperative ultrasound guidance |
| Aesthetic Medicine | Subcutaneous fat analysis, injection layer navigation, pre/post structural comparison |
| Emergency Medicine | Rapid MSK and vascular assessment at bedside |
Supported Clinical Modules
If you already own ultrasound hardware and want AI upgrade without full‑system replacement, review UltraVid Link and UltraVid Tab options.
FAQ
Q1: Do I need to purchase a separate ultrasound machine to work with UltraVid Cart Pro?
No. This is a self‑contained all‑in‑one ultrasound‑AI cart system, with built‑in ultrasound imaging hardware. You can perform scanning and AI‑guidance procedures directly out‑of‑the‑box.
Q2: How long is the real‑time‑scanning battery runtime?
≥ 380 minutes continuous non‑freeze real‑time scanning under full‑power mode. Battery status indicator is built into the cart console.
Q3: Can I change or add different ultrasound probes on UltraVid Cart Pro?
Yes, the cart supports interchangeable probes (1.0‑15.0 MHz linear / convex). Up to three probes can be configured for one system. Please state your probe‑requirements in your inquiry.
Q4: Does needle‑tracking navigation come pre‑enabled on Cart Pro?
Base unit contains hardware support for needle‑tracking. The corresponding MSK / Nerve‑Block therapeutic software module needs to be activated via license upgrade.
Q5: What commissioning support is provided for Cart Pro?
We support remote guided commissioning; on‑site hands‑on installation and clinical training is available as optional paid service for large‑hospital projects.
Q6: Can patient scan‑data stored inside the cart be exported?
Yes. Case images, measurement data and generated reports support standard export for hospital‑information‑system docking and clinical‑research usage.
