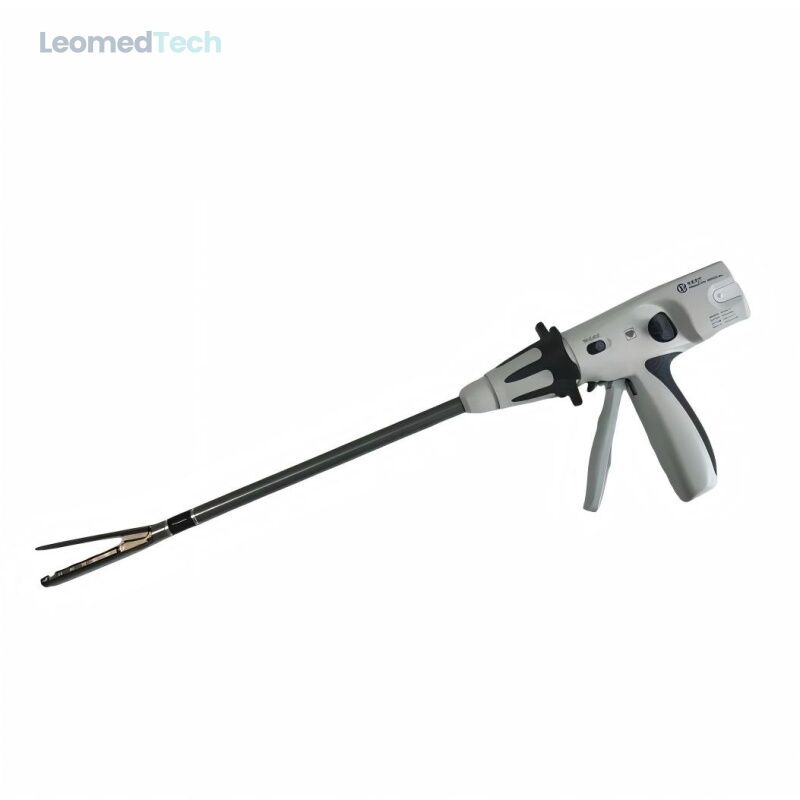

Disposable Electric Endoscopic Linear Cutter Stapler And Reload Assembly featuring Pure Titanium Staples
Disposable electric endoscopic linear cutter stapler with 45/60mm staple lines, 185/240/340mm shaft lengths, and 5 color-coded reloads (2.5-4.2mm) for GI, thoracic and laparoscopic surgery
Class III 3D Printing Materials
,3D Printing Materials White
,Grey 3d printed crown tooth
- Single-use – eliminates cross‑infection. Split reload/blade ensures stable staples; stainless steel blade stays sharp on thick tissue.
- Raised‑bump surface – securely grips thick tissue, preventing slippage.
- Stepless articulation – one‑hand control for easy access in narrow spaces.
- Stable electric drive – high‑performance lithium battery delivers consistent power with minimal tremor.
- Manual closure handle – enables one‑hand quick open/close and on‑the‑fly tissue adjustment.
- Thumb‑wheel articulation – stepless adjustment with auto‑lock for precise positioning.
- Closed knife slot – prevents tissue embedding and supports calcified/hard tissues (e.g., bronchial transection).
- Pure titanium staples – excellent biocompatibility, reduced inflammation/rejection, and minimal CT/MRI artifacts for clear postoperative imaging.
| Model | Shaft Length | Shaft Length(mm) | Staple Line Length(mm) | Compatible Trocar Size(mm) |
|---|---|---|---|---|
| HCPG45-S | Compact Shaft | 185 | 47 | 12 |
| HCPG45-M | Standard Shaft | 240 | 47 | 12 |
| HCPG45-L | Long Shaft | 340 | 47 | 12 |
| HCPG60-S | Compact Shaft | 185 | 60 | 12 |
| HCPG60-M | Standard Shaft | 240 | 60 | 12 |
| HCPG60-L | Long Shaft | 340 | 60 | 12 |
| Model | Reload Color | Open Staple Height(mm) | Staple Line Length(mm) | Closed Staple Height(mm) | Total Staple Count(pcs) |
|---|---|---|---|---|---|
| HCPR45W | White | 2.6 | 47 | 1.0 | 70 |
| HCPR45B | Blue | 3.6 | 47 | 1.5 | 70 |
| HCPR45G | Gold | 3.8 | 47 | 1.8 | 70 |
| HCPR45E | Green | 4.1 | 47 | 2.0 | 70 |
| HCPR45K | Black | 4.2 | 47 | 2.3 | 70 |
| HCPR60W | White | 2.6 | 60 | 1.0 | 80 |
| HCPR60B | Blue | 3.6 | 60 | 1.5 | 80 |
| HCPR60G | Gold | 3.8 | 60 | 1.8 | 80 |
| HCPR60E | Green | 4.1 | 60 | 2.0 | 80 |
| HCPR60K | Black | 4.2 | 60 | 2.3 | 80 |
Q1: Why use an electric stapler instead of a manual one?
Electric staplers ensure uniform compression and minimize firing force, reducing surgeon fatigue and hand tremor during long procedures. Our model is powered by a high-performance lithium battery for consistent, stable performance, delivering reliable stapling throughout extended surgeries.
Q2: What is the advantage of pure titanium staples?
Pure titanium offers excellent biocompatibility — no reaction with body fluids or tissues, reducing the risk of rejection, corrosion, inflammation, and foreign-body reactions. Unlike some alloys, pure titanium produces minimal metal artifacts on postoperative CT/MRI scans, ensuring clear imaging for follow-up diagnosis.
Q3: Does this stapler support articulation? Can I adjust the angle?
Yes. It features stepless (infinite) articulation controlled by a thumb wheel — simply push or pull slightly to enter “neutral” mode, freely adjust to tissue angles, and the tip auto-locks in position. This enables precise single-handed positioning even in narrow surgical fields.
Q4: What is the difference between 45mm and 60mm staple line lengths? How do I choose?
45mm cartridges deliver 70 staples per firing; 60mm cartridges deliver 80 staples. The 45mm is often preferred when access is limited, angles are tight, or precise placement matters more than span. The 60mm can reduce the number of firings in longer transections, but requires more clearance to position properly. Choose based on your surgical field and the length of tissue to be transected — not simply “bigger is better”.
Q5: What do the different cartridge colors mean? Which one should I use?
The color indicates open staple height for different tissue thicknesses:
- White (2.5mm) – thin tissue / vascular
- Blue (3.5mm) – regular tissue
- Gold (3.8mm) – medium tissue
- Green (4.1mm) – thick tissue
- Black (4.2mm) – extra-thick tissue (e.g., gastric or bronchial walls)
Always select based on actual tissue thickness — using the wrong height can result in staple malformation.
Q6: What shaft length should I choose?
Short (185mm) – for superficial procedures; Standard (240mm) – for general laparoscopic use; Long (340mm) – for deep anatomical access or obese patients.
Q7: Can the stapler be operated with one hand?
Yes. It retains a manual closure handle for one-hand quick open/close — faster than fully automated buttons and allows surgeons to adjust tissue position at any time. The thumb-wheel articulation and firing are also designed for single-hand operation.
Q8: What safety features does it have?
- Safety lock – prevents misfiring and accidental firing
- Dual emergency retraction – allows blade withdrawal from any firing position
- Closed knife slot – prevents tissue embedding and provides bottom support for calcified or hard tissues (e.g., bronchial transection)
- Single-use design – eliminates cross-infection risk
